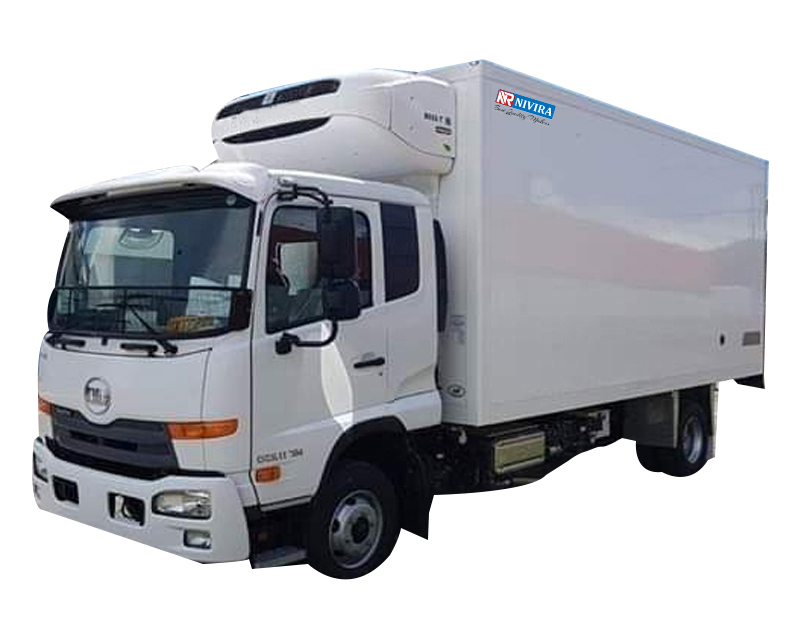

Refrigeration container (GRP)

• Nivira refrigeration containers are designed to transport items at the temperature range of 12℃ to-25℃

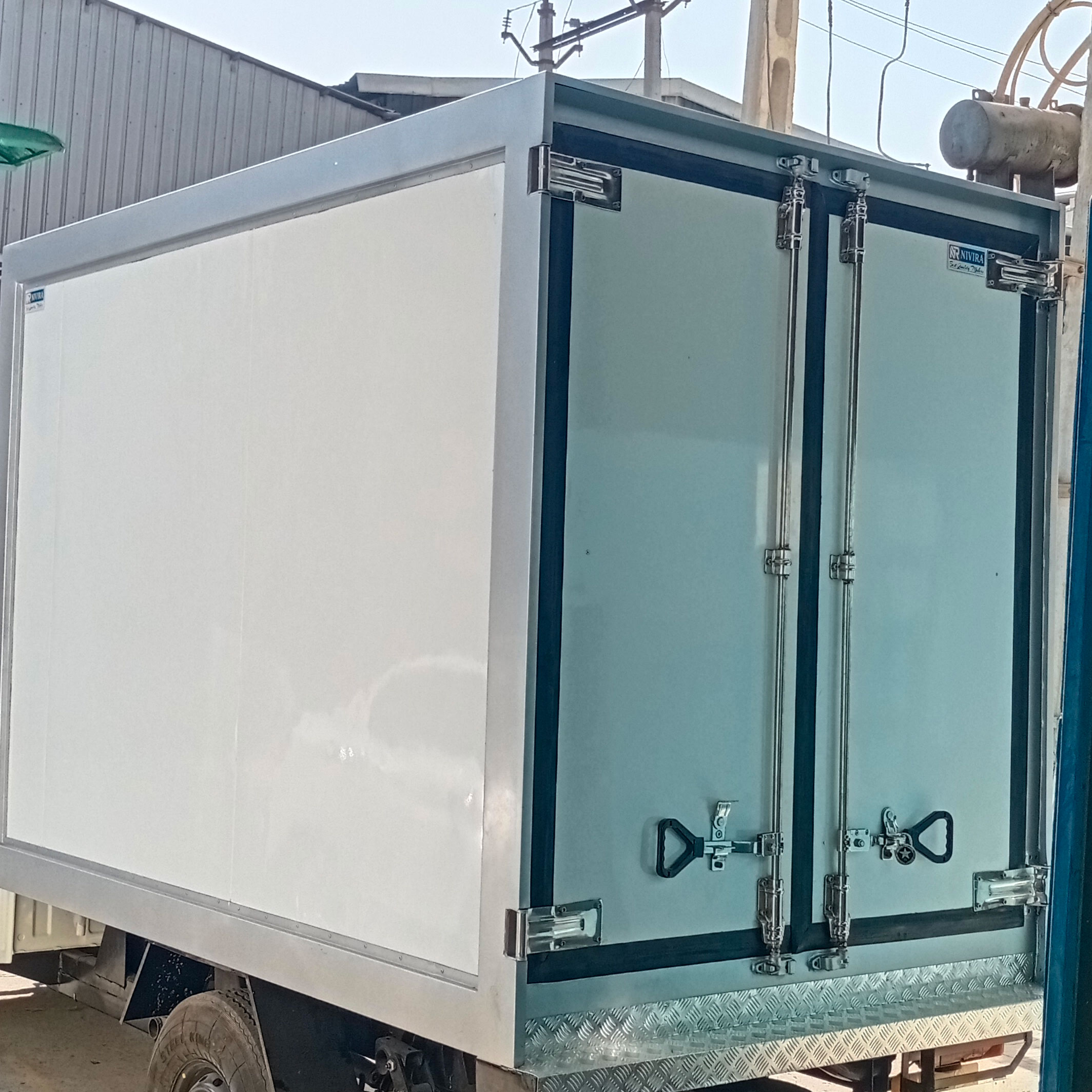

• All six sides of the container is of sandwich panel construction and the superstructure is fully rust and corrosion proof

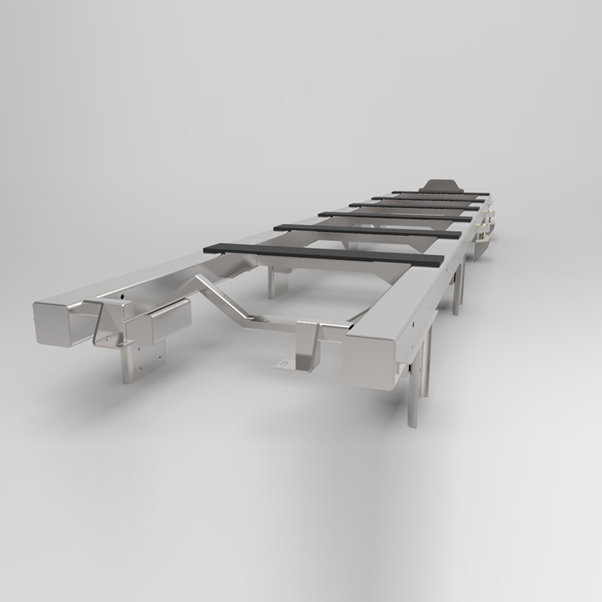

• GRP sandwich panel container is integrated with the chassis with the help of a sub frame, cup and cleat arrangements.
• The sidewalls, end wall, door panels and roof of the container are of sandwich panels with GRP joint less sheets (1 .6mm thick minimum) for both inner and outer skin. All sandwich panels having thermal conductivity of 0.022 W/mk & density of 40 to 42 kg/m³.
• All external panel joints are adequately camouflaged with extruded Aluminium profile
• All panel joineries are of welded construction at both inside and outside of the joints.

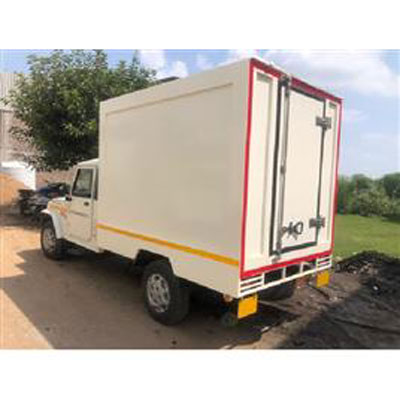

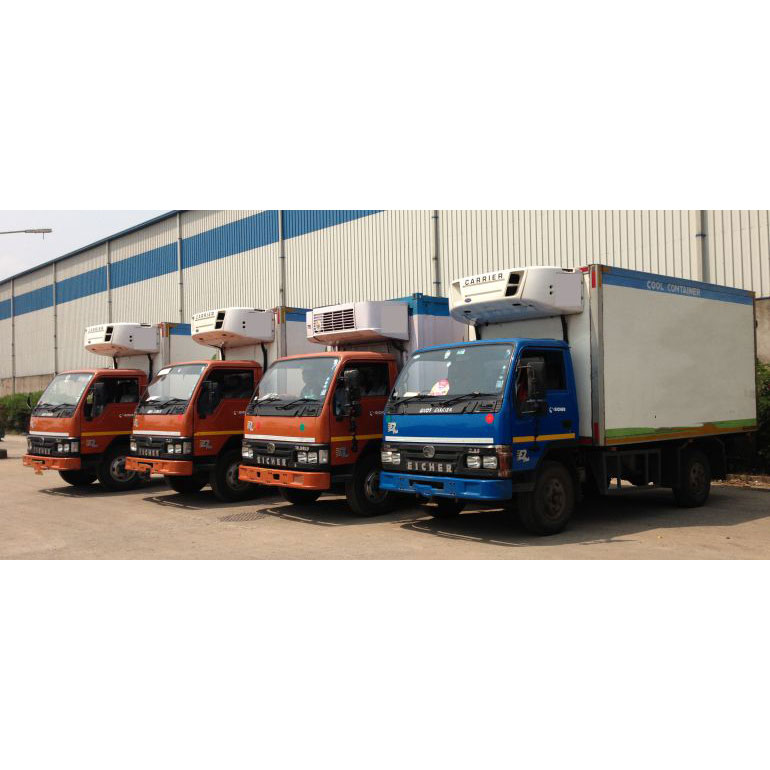

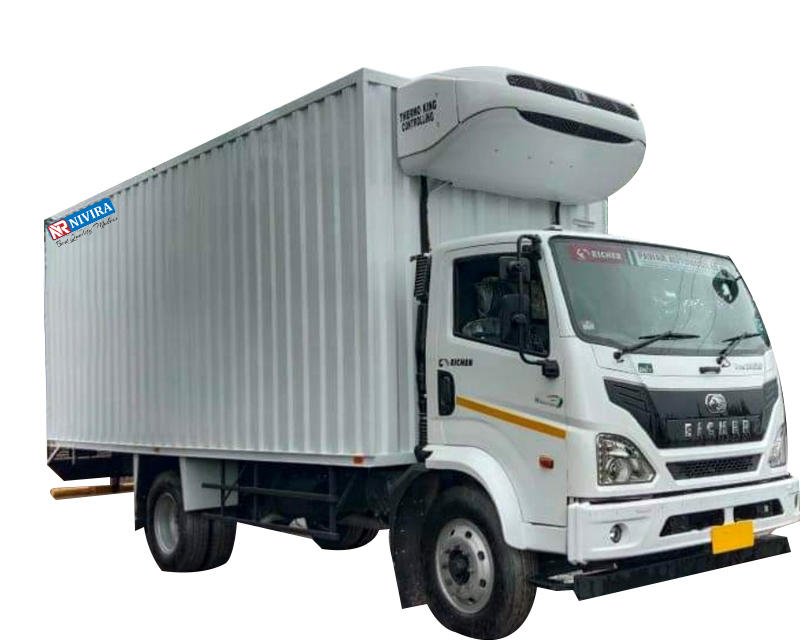

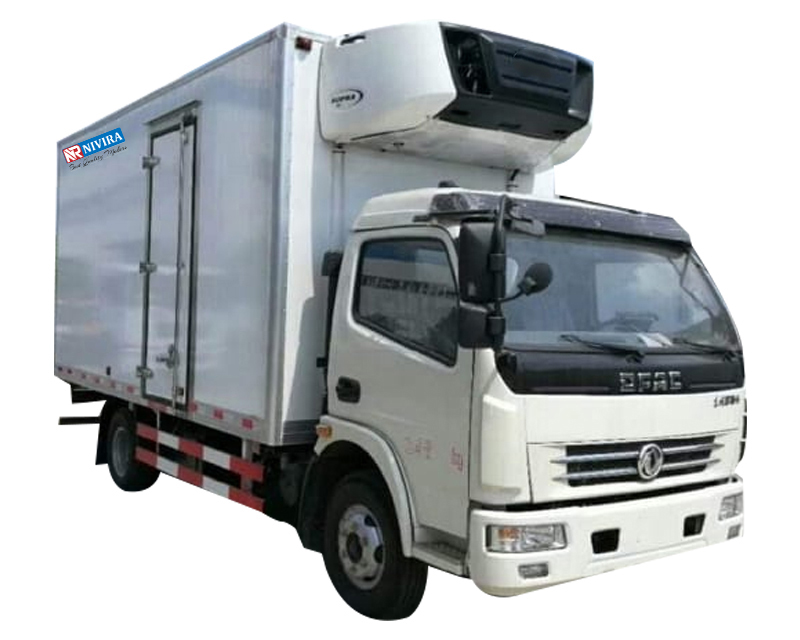

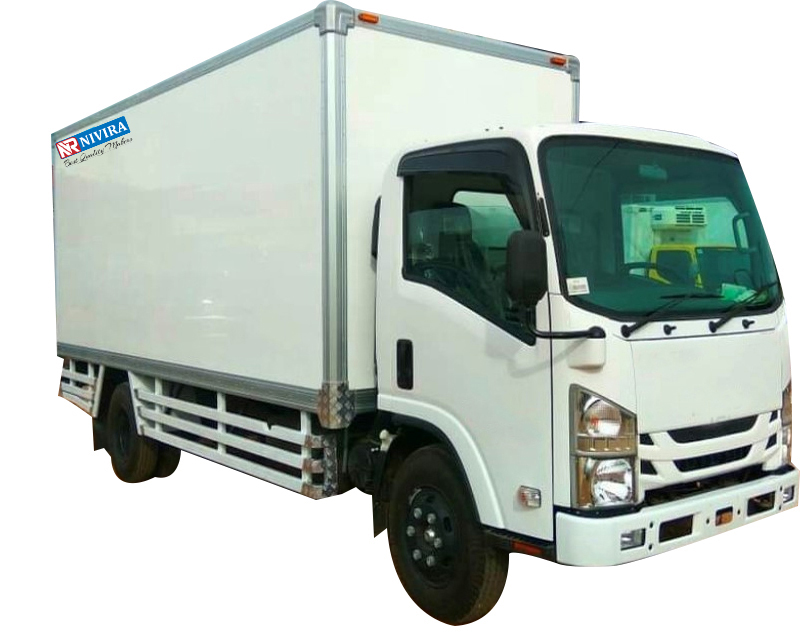

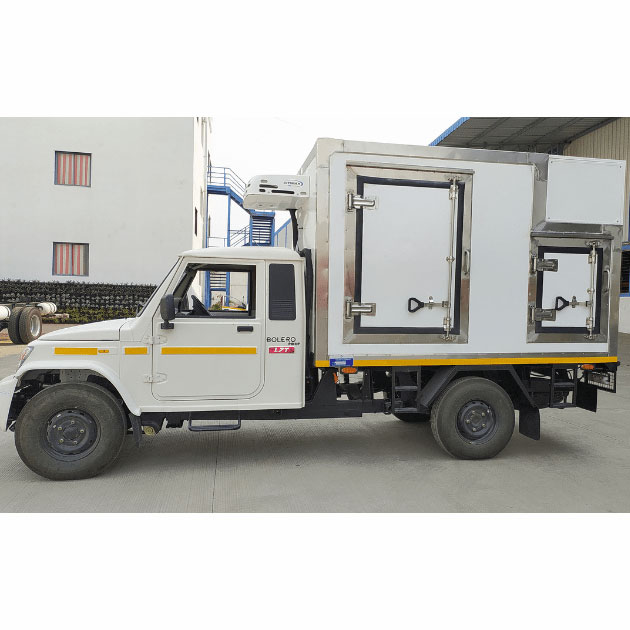

• We use vehicles like Eicher Pro, Mahindra maxi truck, Mahindra Bolero, Tata LPT turbo

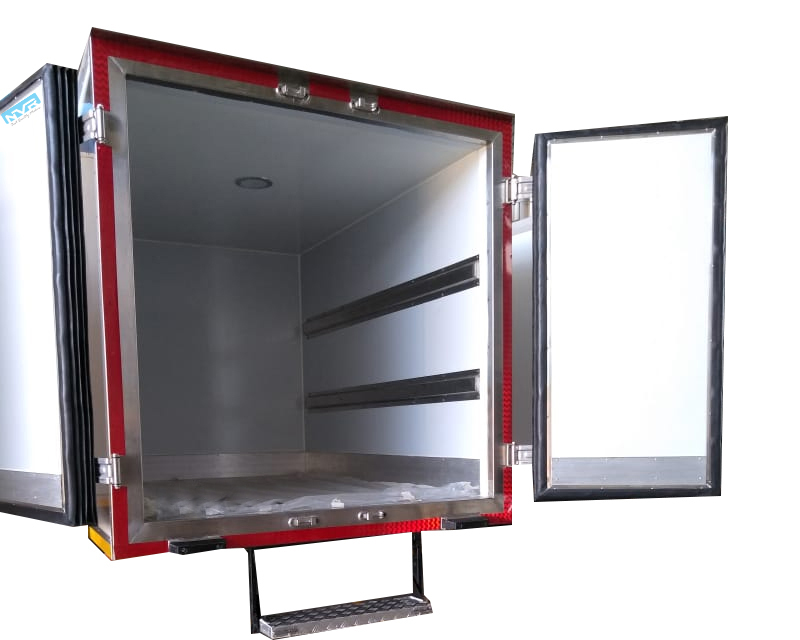

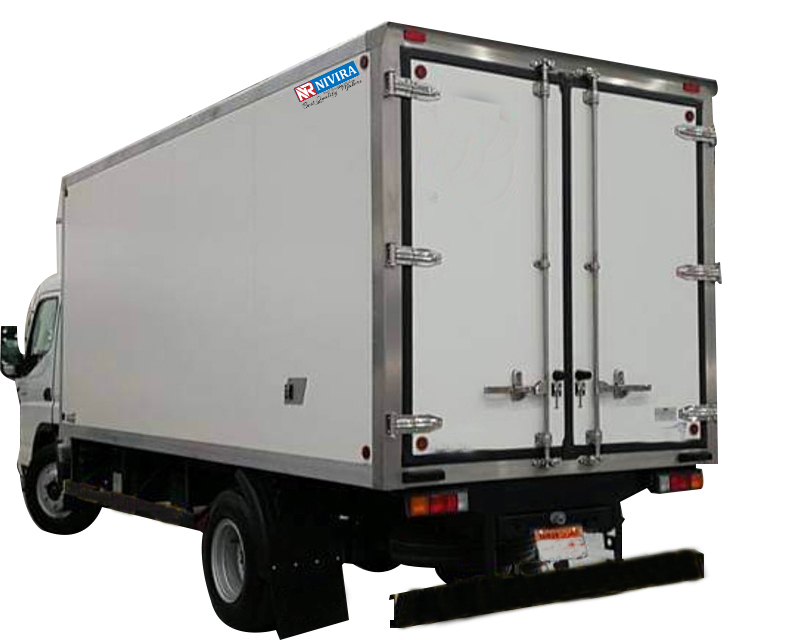

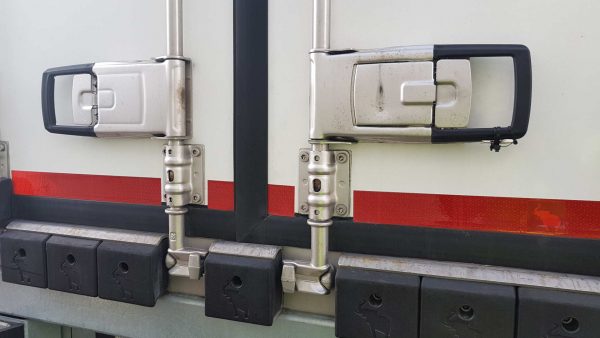

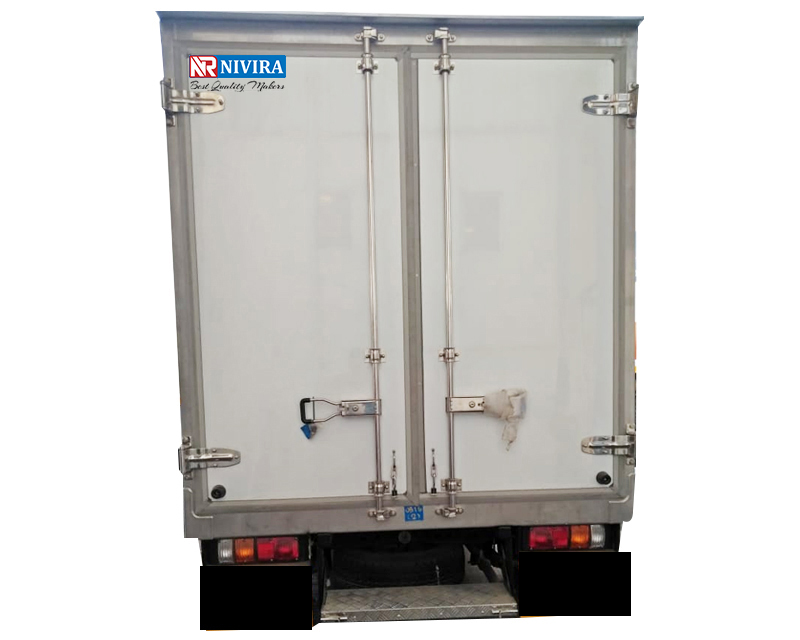

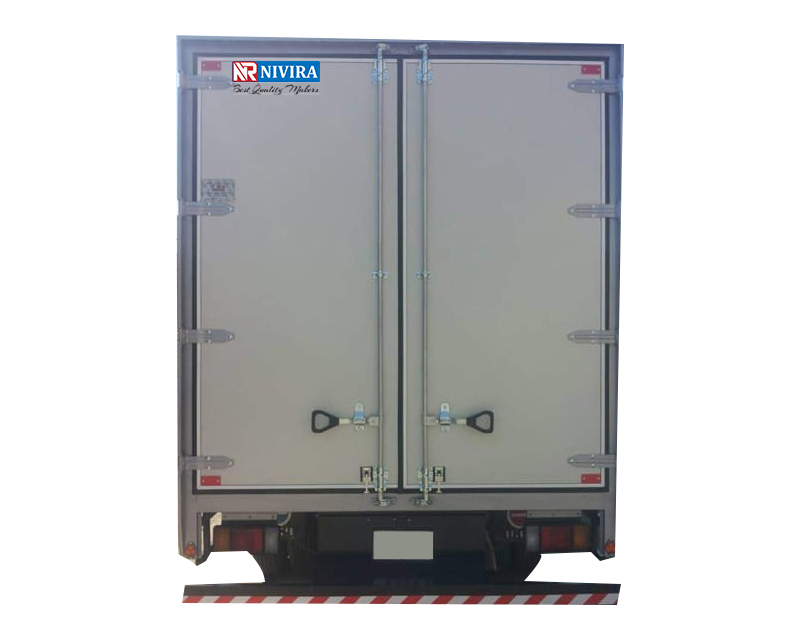

• We offer containers in variety of doors.

Functions

1. Maximum Versatility, Optimal Performance
2. Low Weight, More Freight
3. Agile and Robust
4. Lower Operating Costs, Superior Thermal Efficiency
5. Better Insulation, High Strength

Specification

Compressor Type: Semi sealed/Scroll type

PUF Panel Thickness:
Application for Frozen Items: 100 mm + 64 mm (Eutectic Plate)
Application for Chilled Items: 80/100 mm + 64 mm (Eutectic Plate)

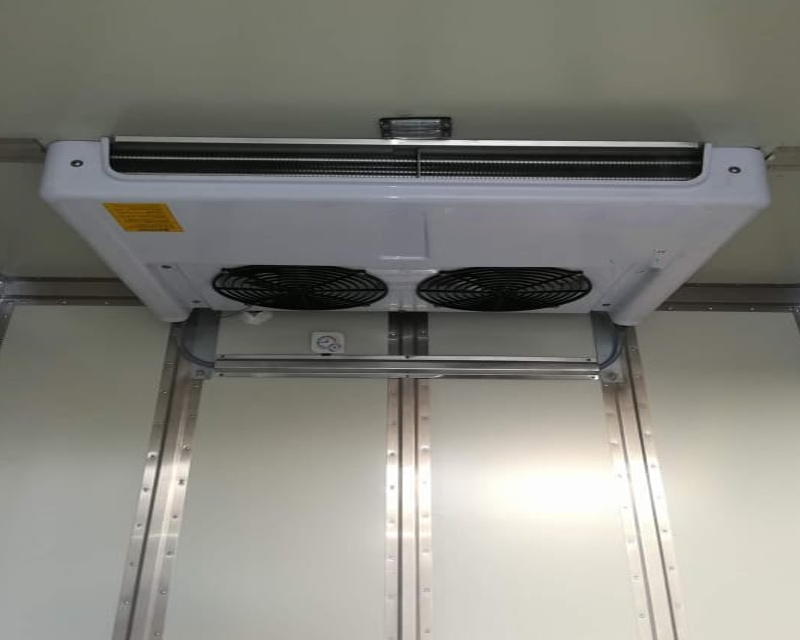

Refrigerating System: Air cooled with Electric Support

Temperature:
Application For Frozen Items: -23 °C after charging & -15 °C after 10 To 12 Hr.
Application For Chilled Items: 0 °C after charging & +5 °C after 5 Hr. ± 30 min.

Unit Running Time:
Application for Frozen Items: 9 to 11 Hr.
Application for Chilled Items: 5 to 6 Hr.

Backup Time:
Application for Frozen Items: 11 to 12 Hr.
Application for Chilled Items: 5 to 6 Hr.
